VD1 Display Mounting Detail - FSR PWB-200

Materials

Elements

About this detail

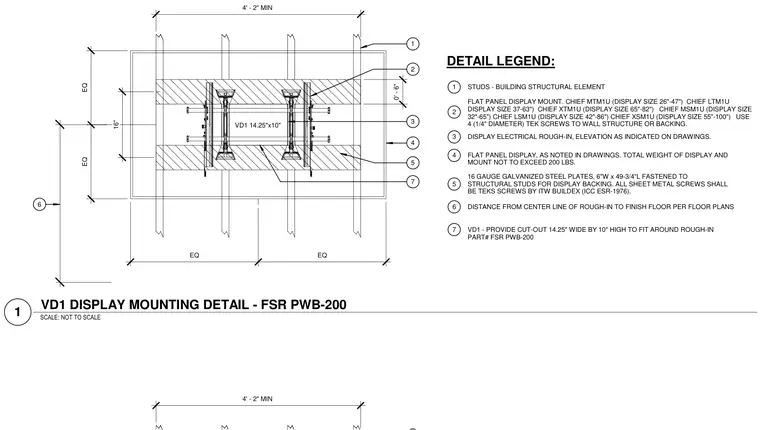

A flat panel display is mounted to building structural studs using sixteen gauge galvanized steel backing plates measuring six inches wide by forty-nine and three-quarters inches long. The backing plates are fastened to the structural studs with ITW Buildex Teks screws per ICC ESR-1976. A cutout measuring fourteen and one-quarter inches wide by ten inches high is provided in the assembly to accommodate an FSR PWB-200 electrical rough-in box. The flat panel display mount, utilizing compatible Chief mount models such as MTM1U, LTM1U, XTM1U, MSM1U, LSM1U, or XSM1U, is secured to the wall structure or backing using four quarter-inch diameter Teks screws. The total weight of the display and mount must not exceed two hundred pounds, with the distance from the centerline of the rough-in to the finish floor coordinated per floor plans.
