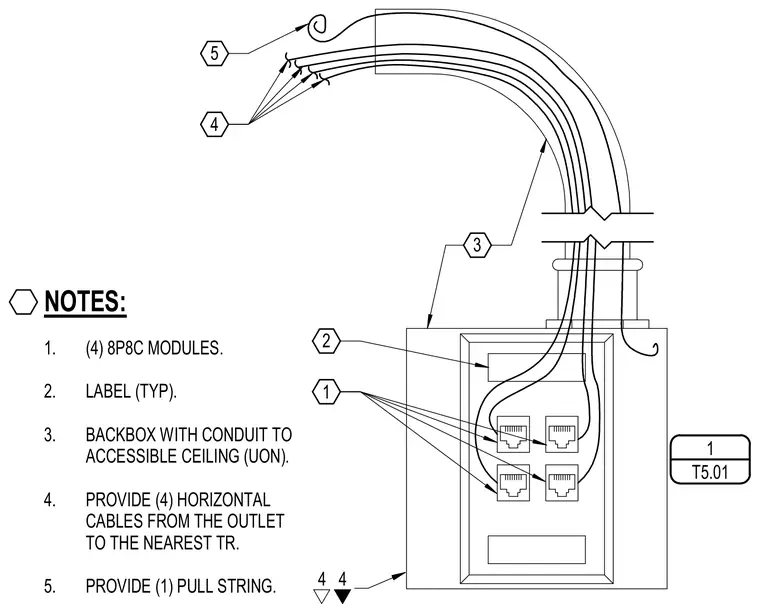

Four 8P8C modules are mounted inside a wall backbox with a typical label. A conduit runs from the backbox to an accessible ceiling unless otherwise noted. Four horizontal cables route from the outlet to the nearest telecommunications room alongside a pull string.
4 4 1. (4) 8P8C MODULES. 2. LABEL (TYP). 3. BACKBOX WITH CONDUIT TO ACCESSIBLE CEILING (UON). 4. PROVIDE (4) HORIZONTAL CABLES FROM THE OUTLET TO THE NEAREST TR. 5. PROVIDE (1) PULL STRING. NOTES: 3 1 2 5 4 1 T5.01
