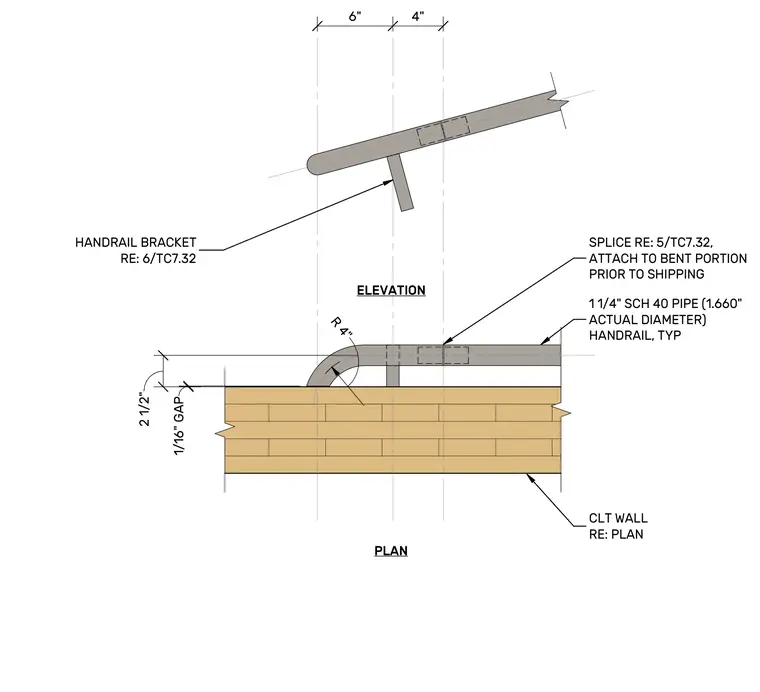

A one-and-a-quarter-inch Schedule 40 pipe handrail with a one-point-six-six-zero-inch actual diameter returns toward a cross-laminated timber wall with a four-inch radius bend. A two-and-a-half-inch clearance is maintained from the wall face, featuring a one-sixteenth-inch gap. The handrail bracket connects per reference drawing six-slash-TC-point-seven-three-two. A handrail splice attaches to the bent portion prior to shipping per reference drawing five-slash-TC-point-seven-three-two.
2 1/2" 1/16" GAP 6" 4" R 4" CLT WALL RE: PLAN 1 1/4" SCH 40 PIPE (1.660" ACTUAL DIAMETER) HANDRAIL, TYP SPLICE RE: 5/TC7.32, ATTACH TO BENT PORTION PRIOR TO SHIPPING HANDRAIL BRACKET RE: 6/TC7.32 PLAN ELEVATION > -Jr ---- Jr r T r 1 I—II—I
