Ceiling Mounted Wireless Access Point Junction Box Detail

Elements

About this detail

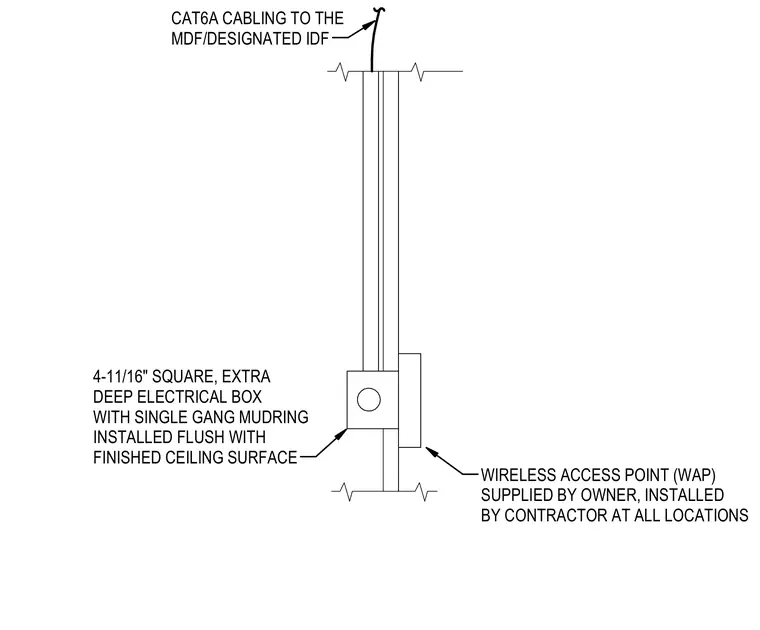

An extra-deep four-and-eleven-sixteenths-inch square electrical box with a single-gang mudring is installed flush with the finished ceiling surface. CAT6A cabling routes from the box to the main distribution frame or designated intermediate distribution frame. A wireless access point, supplied by the owner and installed by the contractor, mounts to the assembly.
