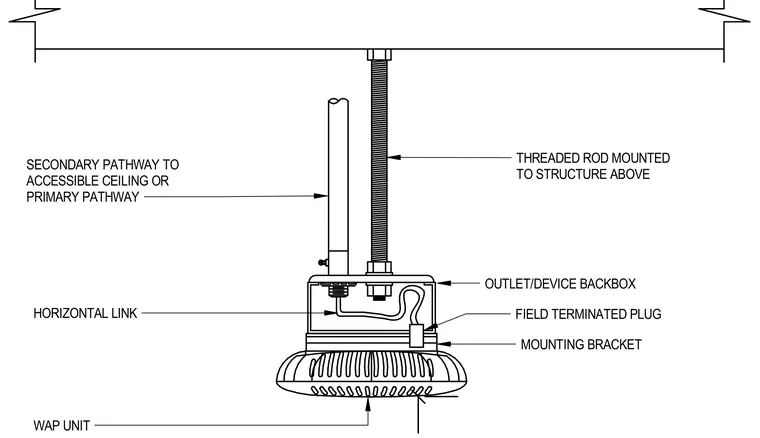

A wireless access point unit connects to a mounting bracket and field terminated plug within an outlet and device backbox. The backbox hangs from a threaded rod mounted directly to the building structure above. A horizontal link connects the device to a secondary pathway routed to an accessible ceiling or primary pathway.
OUTLET/DEVICE BACKBOX FIELD TERMINATED PLUG MOUNTING BRACKET HORIZONTAL LINK WAP UNIT SECONDARY PATHWAY TO ACCESSIBLE CEILING OR PRIMARY PATHWAY THREADED ROD MOUNTED TO STRUCTURE ABOVE
