A telecom ground busbar system features two 20-inch by 4-inch by 1/4-inch tinned copper busbars mounted on isolated stand-off insulators with pre-drilled holes for dual-hole mounting lugs. One 3/0 AWG insulated stranded copper conductor runs vertically in a 1-inch conduit to the furthest riser telecom ground busbar. Another 3/0 AWG insulated stranded copper conductor is bonded to the nearest building structural steel in a 1-inch conduit if routed outside the room. A third 3/0 AWG insulated stranded copper conductor in a 1-inch conduit connects to the main electrical service ground bus.

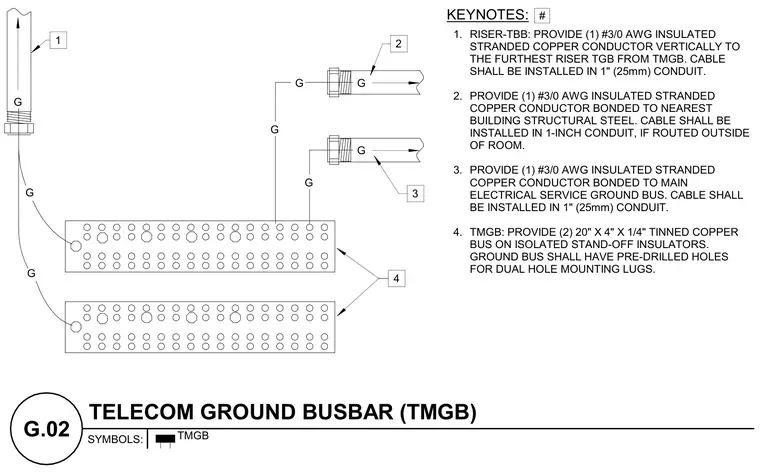

G G G 1. RISER-TBB: PROVIDE (1) #3/0 AWG INSULATED STRANDED COPPER CONDUCTOR VERTICALLY TO THE FURTHEST RISER TGB FROM TMGB. CABLE SHALL BE INSTALLED IN 1" (25mm) CONDUIT. 2. PROVIDE (1) #3/0 AWG INSULATED STRANDED COPPER CONDUCTOR BONDED TO NEAREST BUILDING STRUCTURAL STEEL. CABLE SHALL BE INSTALLED IN 1-INCH CONDUIT, IF ROUTED OUTSIDE OF ROOM. 3. PROVIDE (1) #3/0 AWG INSULATED STRANDED COPPER CONDUCTOR BONDED TO MAIN ELECTRICAL SERVICE GROUND BUS. CABLE SHALL BE INSTALLED IN 1" (25mm) CONDUIT. 4. TMGB: PROVIDE (2) 20" X 4" X 1/4" TINNED COPPER BUS ON ISOLATED STAND-OFF INSULATORS. GROUND BUS SHALL HAVE PRE-DRILLED HOLES FOR DUAL HOLE MOUNTING LUGS. 4 1 KEYNOTES: TELECOM GROUND BUSBAR (TMGB) SYMBOLS: G.02 # TMGB G G G G G 3 2
