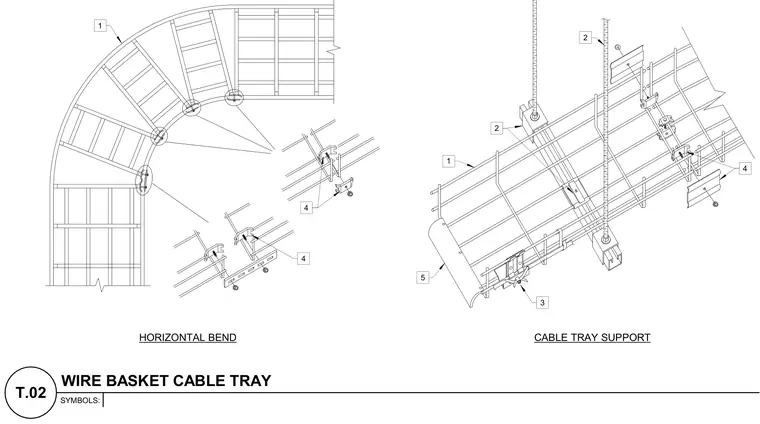

Wire basket cable trays are installed with horizontal directional bends and suspended ceiling supports. Threaded rod hangers secure the overhead support channels to the structure above. Splice connectors and hardware join the wire mesh segments together along the run.
WIRE BASKET CABLE TRAY SYMBOLS: T.02 5 1 2 2 4 3 4 4 1 CABLE TRAY SUPPORT HORIZONTAL BEND
