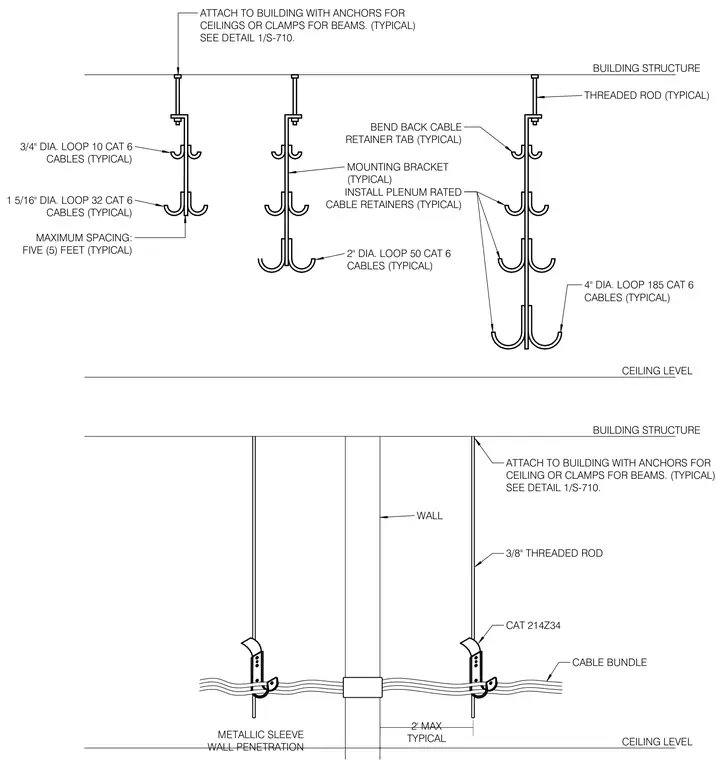

Standard installation of J-hook cable supports suspended from the building structure via three-eighths-inch threaded rods and mounting brackets. Plenum-rated cable retainers are installed with bent-back retainer tabs to secure various capacities of Category 6 cables ranging from ten to one hundred eighty-five cables per loop. Supports are spaced at a maximum of five feet on center. Cable bundles pass through metallic sleeves at wall penetrations.
THREADED ROD (TYPICAL) INSTALL PLENUM RATED CABLE RETAINERS (TYPICAL) BEND BACK CABLE RETAINER TAB (TYPICAL) 4" DIA. LOOP 185 CAT 6 CABLES (TYPICAL) 2" DIA. LOOP 50 CAT 6 CABLES (TYPICAL) MOUNTING BRACKET (TYPICAL) ATTACH TO BUILDING WITH ANCHORS FOR CEILINGS OR CLAMPS FOR BEAMS. (TYPICAL) SEE DETAIL 1/S-710. 3/4" DIA. LOOP 10 CAT 6 CABLES (TYPICAL) 1 5/16" DIA. LOOP 32 CAT 6 CABLES (TYPICAL) MAXIMUM SPACING: FIVE (5) FEET (TYPICAL) BUILDING STRUCTURE WALL METALLIC SLEEVE WALL PENETRATION CAT 214Z34 3/8" THREADED ROD 2' MAX TYPICAL CEILING LEVEL CEILING LEVEL BUILDING STRUCTURE CABLE BUNDLE ATTACH TO BUILDING WITH ANCHORS FOR CEILING OR CLAMPS FOR BEAMS. (TYPICAL) SEE DETAIL 1/S-710.
