A fixed IP dome CCTV camera in an environmental housing is surface mounted on a concrete wall. The assembly connects to an IP data jack and a six-by-six-by-four-inch junction box provided by the electrical contractor. An IP jumper cable from the security contractor runs through a three-quarter-inch conduit to the nearest accessible ceiling or cable tray. The camera is mounted at a minimum height of eight feet for interiors and a maximum of fifteen feet for interiors.

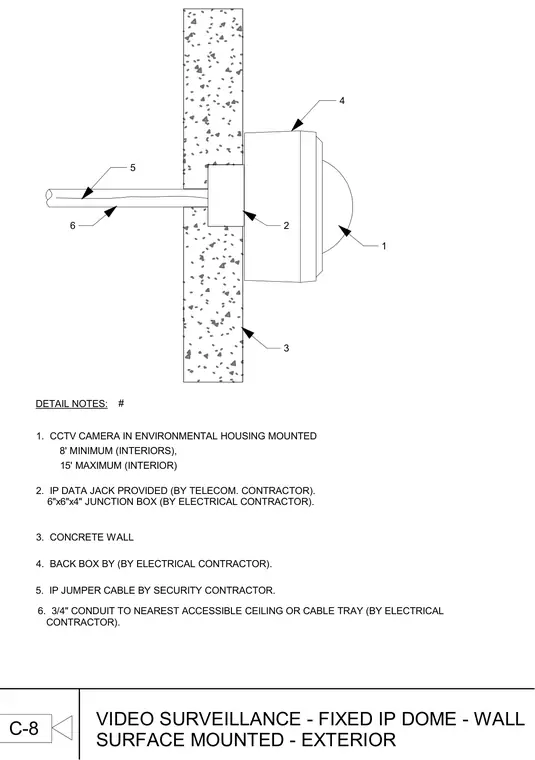

# C-8 DETAIL NOTES: 1. CCTV CAMERA IN ENVIRONMENTAL HOUSING MOUNTED 8' MINIMUM (INTERIORS), 15' MAXIMUM (INTERIOR) 3. CONCRETE WALL 4. BACK BOX BY (BY ELECTRICAL CONTRACTOR). 5. IP JUMPER CABLE BY SECURITY CONTRACTOR. 6. 3/4" CONDUIT TO NEAREST ACCESSIBLE CEILING OR CABLE TRAY (BY ELECTRICAL CONTRACTOR). 2. IP DATA JACK PROVIDED (BY TELECOM. CONTRACTOR). 6"x6"x4" JUNCTION BOX (BY ELECTRICAL CONTRACTOR). VIDEO SURVEILLANCE - FIXED IP DOME - WALL SURFACE MOUNTED - EXTERIOR 4 1 2 3 5 6
