Cable trays are suspended using a minimum 10 gauge wire spaced at 4'-0" intervals. The suspension wire attaches to the overhead concrete or metal deck structure with shot pins and clips similar to D2/A10.40. Connections require a minimum of three tight turns to secure the wire.

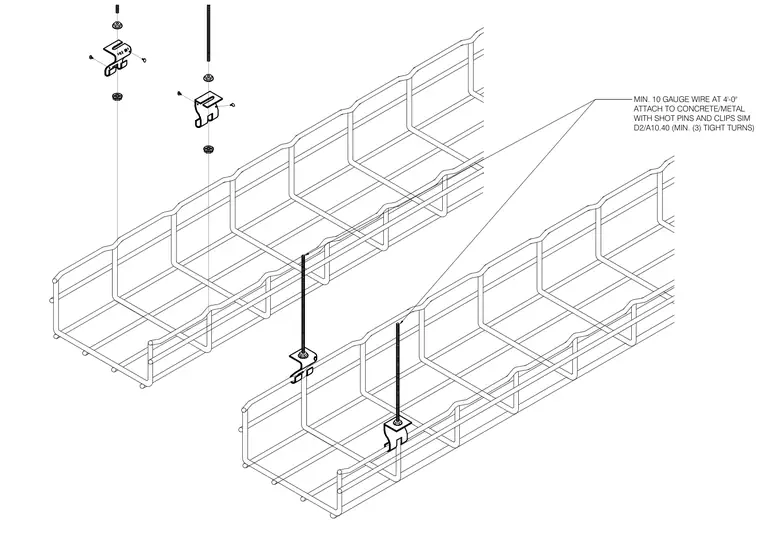

MIN. 10 GAUGE WIRE AT 4'-0" ATTACH TO CONCRETE/METAL WITH SHOT PINS AND CLIPS SIM D2/A10.40 (MIN. (3) TIGHT TURNS)
