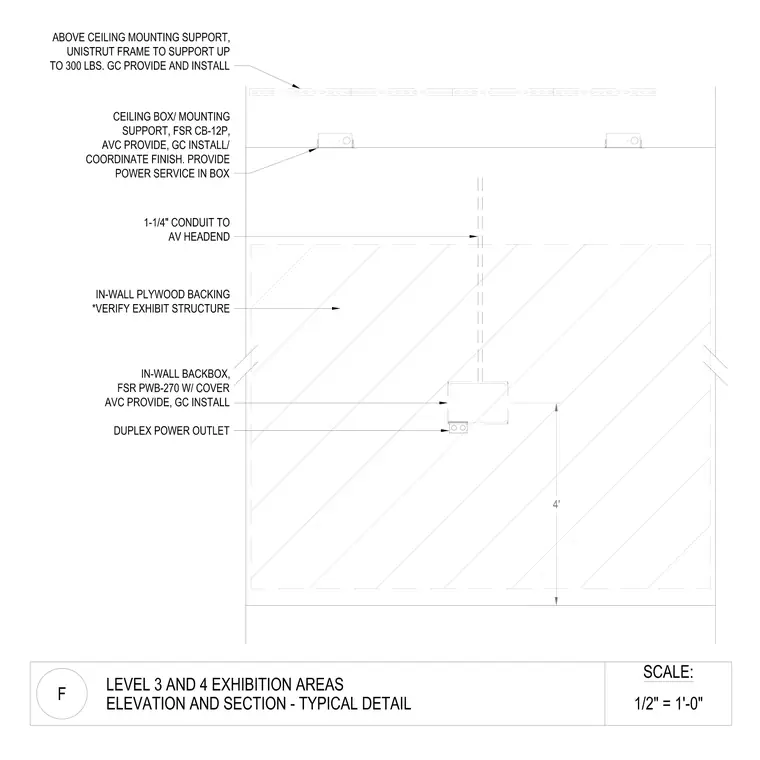

An above-ceiling Unistrut frame provides mounting support up to 300 pounds. A ceiling box and mounting support model FSR CB-12P connects via a one-and-one-quarter-inch conduit to the audio-visual headend. In-wall plywood backing is installed against the exhibit structure, housing an in-wall backbox model FSR PWB-270 with a cover and a duplex power outlet positioned four feet above the finished floor.
