Poke thru Device (Data & AV)

Materials

Elements

About this detail

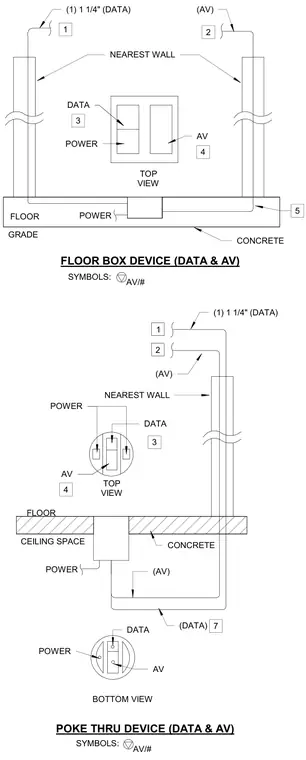

A floor box device and a poke-thru device are installed within a concrete floor slab to route data, audiovisual, and power services from the ceiling space below to the nearest wall above. The poke-thru unit penetrates the concrete slab, housing dedicated compartments for power, data, and AV connections with top and bottom views indicating conduit paths and service clearances. The floor box assembly similarly integrates power and low-voltage cabling routed through the floor grade and slab.
