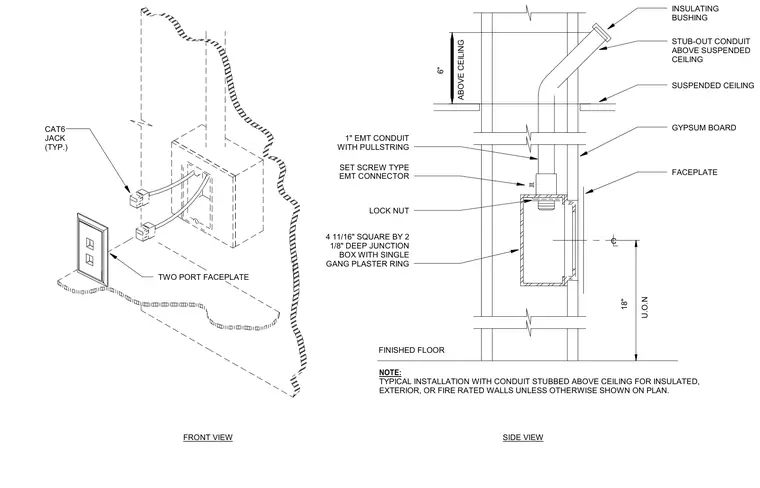

A 4-11/16 inch square by 2-1/8 inch deep junction box with a single-gang plaster ring is mounted at 18 inches above the finished floor to a gypsum board wall. A two-port faceplate with typical CAT6 jacks attaches to the front of the box. A 1-inch electrical metallic tubing conduit with a pullstring connects to the top of the junction box using a set-screw type electrical metallic tubing connector and lock nut. The conduit extends vertically up through the wall, terminating six inches above the suspended ceiling with an insulating bushing stub-out.
CAT6 JACK (TYP.) FINISHED FLOOR ABOVE CEILING 6" TWO PORT FACEPLATE NOTE: TYPICAL INSTALLATION WITH CONDUIT STUBBED ABOVE CEILING FOR INSULATED, EXTERIOR, OR FIRE RATED WALLS UNLESS OTHERWISE SHOWN ON PLAN. INSULATING BUSHING STUB-OUT CONDUIT ABOVE SUSPENDED CEILING SUSPENDED CEILING GYPSUM BOARD U.O.N 18" C FACEPLATE 1" EMT CONDUIT WITH PULLSTRING SET SCREW TYPE EMT CONNECTOR LOCK NUT 4 11/16" SQUARE BY 2 1/8" DEEP JUNCTION BOX WITH SINGLE GANG PLASTER RING FRONT VIEW SIDE VIEW
