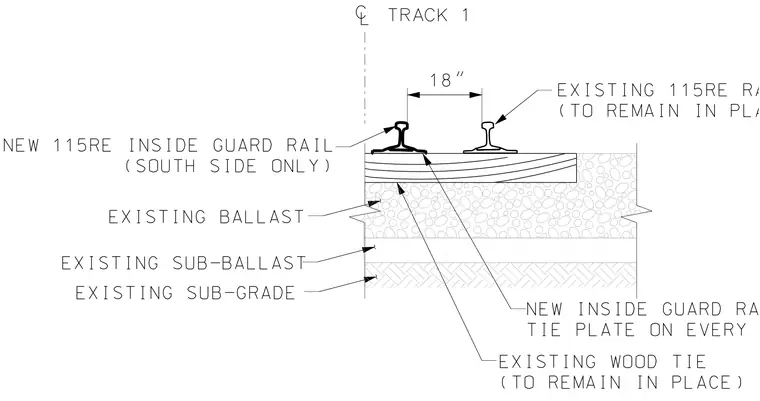

This cross-section details the installation of an inside guard rail adjacent to an existing running rail on a wood tie track assembly. The assembly consists of an existing 115RE rail and a new 115RE inside guard rail spaced eighteen inches apart, supported by existing wood ties. A tie plate is installed on every tie beneath the rails. The track structure rests on existing ballast, sub-ballast, and sub-grade layers.
EXISTING SUB-BALLAST EXISTING BALLAST EXISTING SUB-GRADE (SOUTH SIDE ONLY) NEW 115RE INSIDE GUARD RAIL (TO REMAIN IN PLACE) EXISTING WOOD TIE TIE PLATE ON EVERY TIE NEW INSIDE GUARD RAIL (TO REMAIN IN PLACE) EXISTING 115RE RAIL 18" SCALE " = 1’-0" Ø TRACK 1 SCALE " = 1’-0" PROPOSED INSIDE GUARD RAIL SECTION- WOOD TIE
