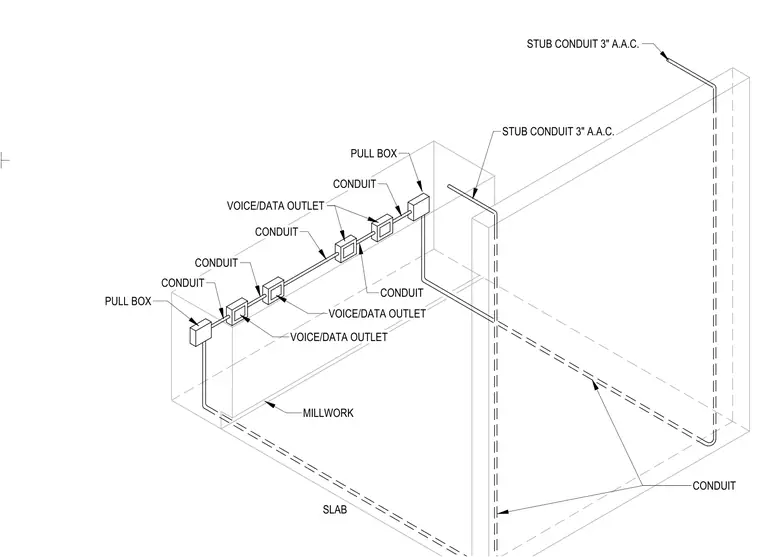

This assembly features a series of voice and data outlets interconnected by conduit runs integrated into island millwork. Pull boxes are positioned at intervals along the conduit path to facilitate cable pulling. The system transitions from the millwork into the floor slab via three-inch stub conduits, which are designated as above-accessible-ceiling or similar routing. The conduit network is concealed within the millwork structure to provide organized telecommunications access points.
