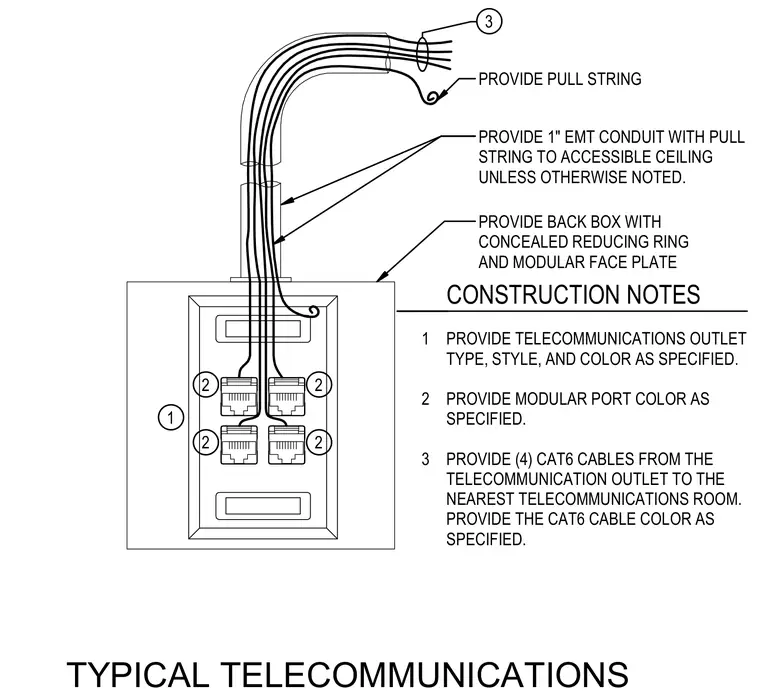

A back box with a concealed reducing ring and modular face plate mounts flush in the wall. A one-inch electrical metallic tubing conduit with a pull string runs from the back box up to an accessible ceiling. Four Category 6 cables route from the telecommunications outlet through the conduit to the nearest telecommunications room. A pull string is provided inside the conduit.
PROVIDE 1" EMT CONDUIT WITH PULL STRING TO ACCESSIBLE CEILING UNLESS OTHERWISE NOTED. PROVIDE BACK BOX WITH CONCEALED REDUCING RING AND MODULAR FACE PLATE PROVIDE PULL STRING PROVIDE TELECOMMUNICATIONS OUTLET TYPE, STYLE, AND COLOR AS SPECIFIED. PROVIDE MODULAR PORT COLOR AS SPECIFIED. PROVIDE (4) CAT6 CABLES FROM THE TELECOMMUNICATION OUTLET TO THE NEAREST TELECOMMUNICATIONS ROOM. PROVIDE THE CAT6 CABLE COLOR AS SPECIFIED. CONSTRUCTION NOTES 1 2 3 1 2 2 2 2 3 TYPICAL TELECOMMUNICATIONS
