Science Room Audio Visual System Riser Diagram

Elements

About this detail

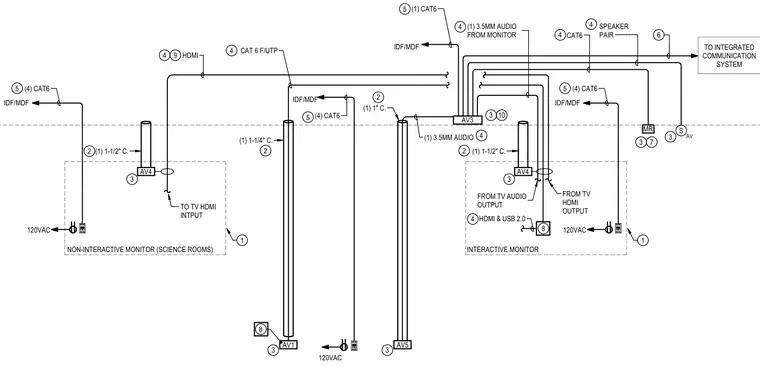

This telecommunication riser diagram details the audio-visual and data cabling infrastructure for science rooms, connecting interactive and non-interactive monitors back to the intermediate distribution frame and main distribution frame and integrated communication system. The layout incorporates various conduit sizes including one-inch, one-and-one-quarter-inch, and one-and-one-half-inch conduits routing CAT6 cables, HDMI lines, USB 2.0 connections, 3.5mm audio cables, and speaker pairs. Dedicated 120-volt alternating current power outlets supply the monitor locations, while tagged junction boxes and boxes link the components to the building-wide telecommunications network.
