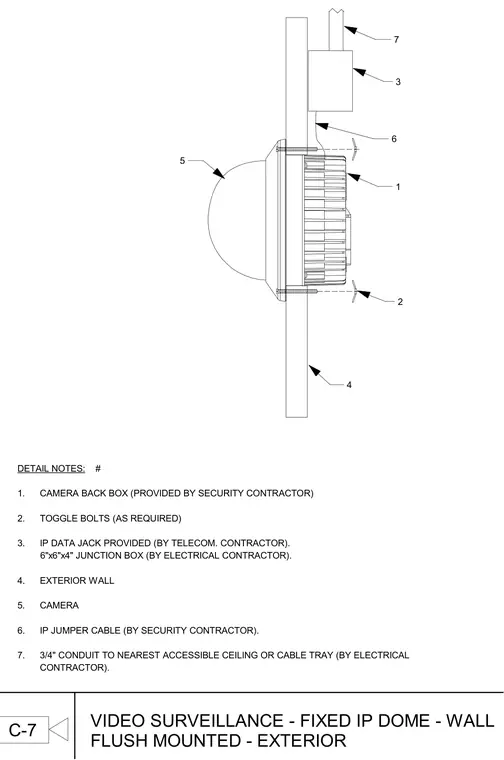

A fixed IP dome security camera is flush mounted to an exterior wall using toggle bolts. The camera back box is secured directly behind the exterior wall surface and connected to an IP data jack located inside a six-by-six-by-four-inch junction box. An internet protocol jumper cable links the camera to the data jack. A three-quarter-inch conduit routes from the junction box to the nearest accessible ceiling or cable tray.
# C-7 DETAIL NOTES: 1. CAMERA BACK BOX (PROVIDED BY SECURITY CONTRACTOR) 2. TOGGLE BOLTS (AS REQUIRED) 3. IP DATA JACK PROVIDED (BY TELECOM. CONTRACTOR). 6"x6"x4" JUNCTION BOX (BY ELECTRICAL CONTRACTOR). 4. EXTERIOR WALL 5. CAMERA 6. IP JUMPER CABLE (BY SECURITY CONTRACTOR). 7. 3/4" CONDUIT TO NEAREST ACCESSIBLE CEILING OR CABLE TRAY (BY ELECTRICAL CONTRACTOR). VIDEO SURVEILLANCE - FIXED IP DOME - WALL FLUSH MOUNTED - EXTERIOR 7 3 6 1 2 4 5
