An arm-mounted camera housing connects to an exterior wall below an accessible ceiling. A corner mount bracket is provided for corner-mounted installations, positioning the device box six inches offset from the corner and eight inches below the camera mounting height.

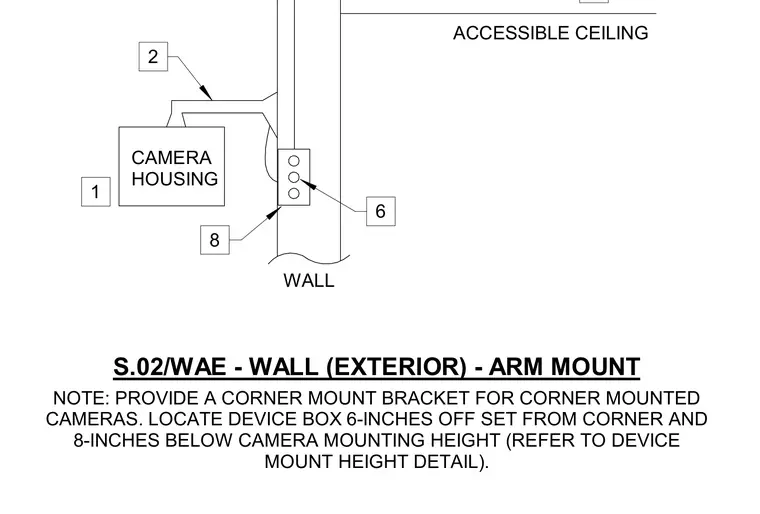

WALL ACCESSIBLE CEILING S.02/WAE - WALL (EXTERIOR) - ARM MOUNT CAMERA HOUSING 6 2 1 NOTE: PROVIDE A CORNER MOUNT BRACKET FOR CORNER MOUNTED CAMERAS. LOCATE DEVICE BOX 6-INCHES OFF SET FROM CORNER AND 8-INCHES BELOW CAMERA MOUNTING HEIGHT (REFER TO DEVICE MOUNT HEIGHT DETAIL). 8
