Telecommunications · T-97EV7

Typical Grounding Bar

Materials

Elements

About this detail

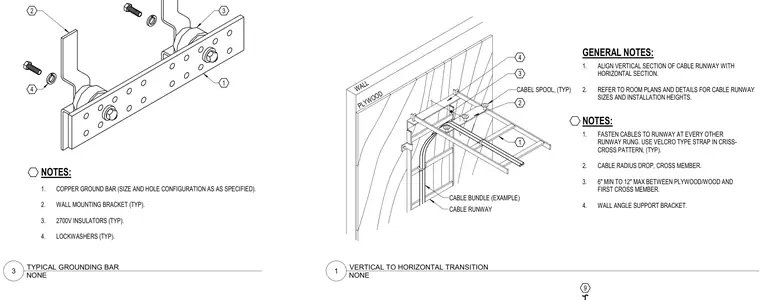

A copper ground bar attaches via a typical wall mounting bracket and 2700V insulators, secured with lockwashers and bolts in this telecommunications detail. The size and hole configuration of the copper ground bar are specified per project requirements.
