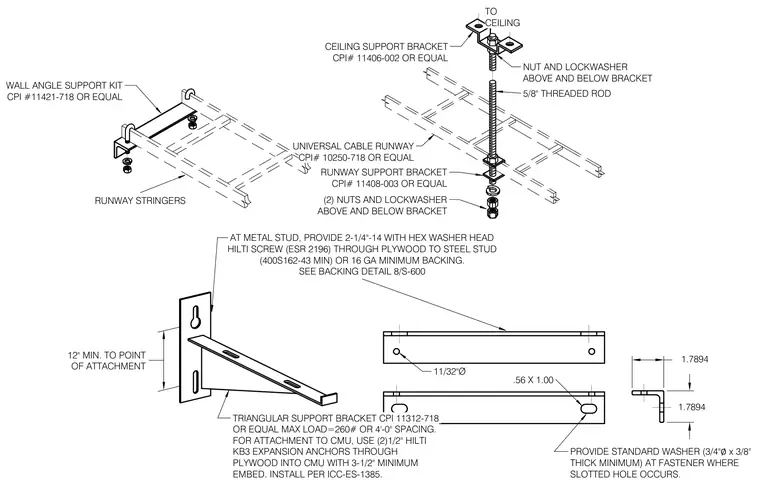

Universal cable runways suspend from ceilings via a 5/8-inch threaded rod secured by nuts and lockwashers above and below the ceiling support bracket and runway support bracket. Wall attachments utilize a triangular support bracket or wall angle support kit secured to metal studs using 2-1/4 inch by 14 hex washer head Hilti screws through plywood into a minimum 16-gauge steel stud or backing. For concrete masonry unit attachments, two 1/2-inch Hilti KB3 expansion anchors are installed through plywood into the masonry with a 3-1/2 inch minimum embedment. Standard washers measuring 3/4-inch diameter by 3/8-inch thick are provided at fasteners where slotted holes occur on the runway stringers.
AT METAL STUD, PROVIDE 2-1/4"-14 WITH HEX WASHER HEAD HILTI SCREW (ESR 2196) THROUGH PLYWOOD TO STEEL STUD (400S162-43 MIN) OR 16 GA MINIMUM BACKING. SEE BACKING DETAIL 8/S-600 RUNWAY STRINGERS 11/32"Ø 1.7894 1.7894 .56 X 1.00 12" MIN. TO POINT OF ATTACHMENT PROVIDE STANDARD WASHER (3/4" ∅ x 3/8" THICK MINIMUM) AT FASTENER WHERE SLOTTED HOLE OCCURS. TRIANGULAR SUPPORT BRACKET CPI 11312-718 OR EQUAL MAX LOAD=260# OR 4'-0" SPACING. FOR ATTACHMENT TO CMU, USE (2)1/2" HILTI KB3 EXPANSION ANCHORS THROUGH PLYWOOD INTO CMU WITH 3-1/2" MINIMUM EMBED. INSTALL PER ICC-ES-1385. WALL ANGLE SUPPORT KIT CPI #11421-718 OR EQUAL CEILING SUPPORT BRACKET CPI# 11406-002 OR EQUAL TO CEILING NUT AND LOCKWASHER ABOVE AND BELOW BRACKET 5/8" THREADED ROD UNIVERSAL CABLE RUNWAY CPI# 10250-718 OR EQUAL RUNWAY SUPPORT BRACKET CPI# 11408-003 OR EQUAL (2) NUTS AND LOCKWASHER ABOVE AND BELOW BRACKET
