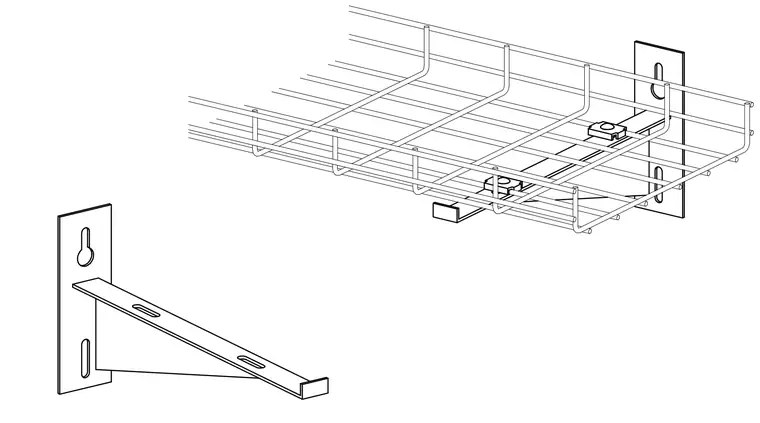

A wall-mounted bracket assembly supports a wire mesh cable tray using a slotted vertical mounting plate and a triangular support arm. The bracket features slotted holes for fasteners and a turned-up lip at the outer end to retain the wiretray. The wire mesh tray secures directly to the support arm using specialized clamp hardware.
