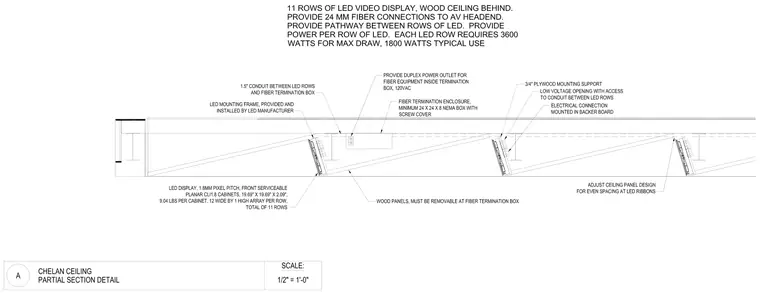

Eleven rows of LED video display panels are mounted in front of a wood ceiling with wood panels designed to be removable at the fiber termination box. The Planar CLI1.8 cabinets measure 19.69 inches by 19.69 inches by 2.09 inches with a 1.8mm pixel pitch, weighing 9.04 pounds per cabinet in a 12-wide by 1-high array per row. An LED mounting frame is provided and installed by the LED manufacturer with a 1.5-inch conduit running between LED rows and a fiber termination box. The fiber termination enclosure consists of a minimum 24-inch by 24-inch by 8-inch NEMA box with a screw cover containing fiber equipment and a duplex power outlet for 120VAC. A 3/4-inch plywood mounting support backs the assembly, providing a low-voltage opening with access to the conduit between LED rows and an electrical connection mounted in the backer board. Each LED row requires 3600 watts for maximum draw with 1800 watts typical use, and 24mm fiber connections run to the AV headend with pathways provided between rows.
