A four and eleven-sixteenth inch square, extra deep electrical box with a single-gang mud ring is installed flush with the finished hard lid ceiling surface. The wireless access point is supplied by the owner and installed by the contractor at all designated locations. Cat6A cabling routes from the box to the main distribution frame or designated intermediate distribution frame structure above.

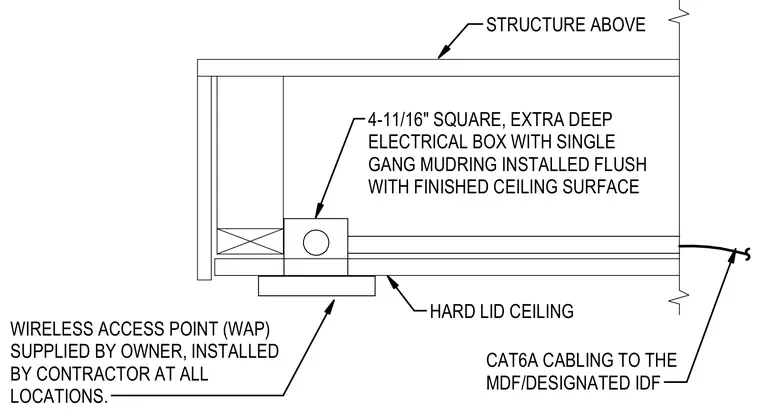

HARD LID CEILING 4-11/16" SQUARE, EXTRA DEEP ELECTRICAL BOX WITH SINGLE GANG MUDRING INSTALLED FLUSH WITH FINISHED CEILING SURFACE CAT6A CABLING TO THE MDF/DESIGNATED IDF STRUCTURE ABOVE WIRELESS ACCESS POINT (WAP) SUPPLIED BY OWNER, INSTALLED BY CONTRACTOR AT ALL LOCATIONS.
