Telecom Outlet Installation at Gypsum Board Wall

Materials

Gypsum / Drywall EIFS / Plaster / Stucco

Elements

About this detail

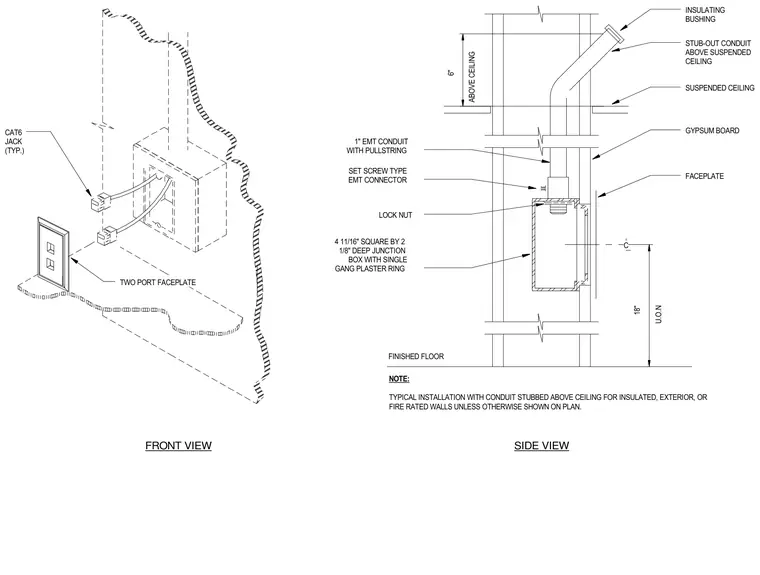

This telecommunications outlet assembly consists of a four and eleven-sixteenths inch square by two and one-eighth inch deep junction box with a single gang plaster ring mounted in a gypsum board wall at eighteen inches above the finished floor unless otherwise noted. A one-inch electrical metallic tubing conduit with a pullstring connects to the junction box using a set screw type electrical metallic tubing connector and lock nut. The conduit extends upward and stubs out six inches above the suspended ceiling, terminated with an insulating bushing. A two-port faceplate with typical Category 6 jacks covers the junction box. This installation is typical for insulated, exterior, or fire-rated walls with conduit stubbed above the ceiling unless otherwise shown on the plan.
