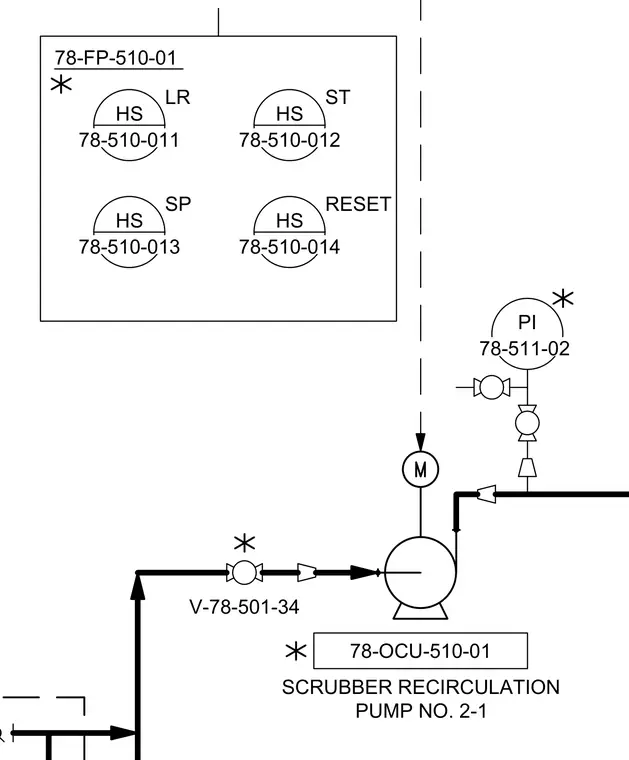

Scrubber recirculation pump number 2-1 is connected to piping with valve V-78-501-34 and pressure indicator PI 78-511-02. Control panel 78-FP-510-01 houses hand switches HS 78-510-011 (LR), HS 78-510-012 (ST), HS 78-510-013 (SP), and HS 78-510-014 (RESET). The motor control and instrumentation loops are identified with tagging throughout the schematic.
V-78-501-34 PI 78-OCU-510-01 SCRUBBER RECIRCULATION PUMP NO. 2-1 HS 78-510-011 LR HS 78-510-012 ST HS 78-510-013 SP HS 78-510-014 RESET )3
