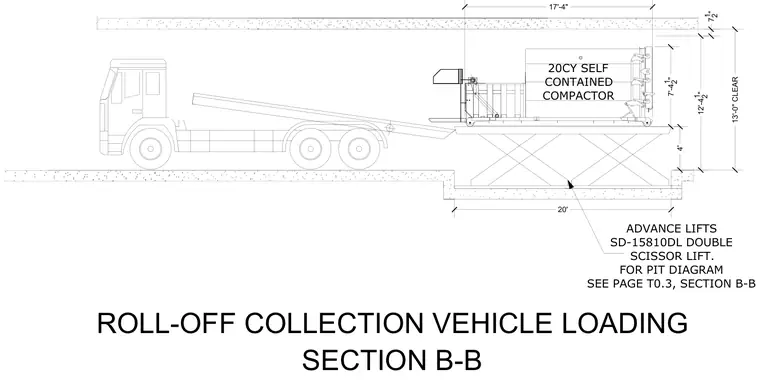

Loading bay layout for a roll-off collection vehicle interfacing with a twenty cubic yard self-contained compactor and an Advance Lifts SD-15810DL double scissor lift set within a concrete pit. Vertical clearance dimensions show a thirteen-foot clear height, with specific component heights for the lift mechanism and compactor unit. A twenty-foot pit dimension and overall horizontal clearances coordinate the placement of the truck and loading equipment. Pit construction and additional dimensional requirements reference sheet T0.3 for complete structural layout.
17'-4" 7'-4 1 2 " ROLL-OFF COLLECTION VEHICLE LOADING SECTION B-B 12'-4 1 2 " ADVANCE LIFTS SD-15810DL DOUBLE SCISSOR LIFT. FOR PIT DIAGRAM SEE PAGE T0.3, SECTION B-B 20' 20CY SELF CONTAINED COMPACTOR 13'-0" CLEAR 7 1 2 " 4'
