3' x 5' Intercept Pull Box Detail

About this detail

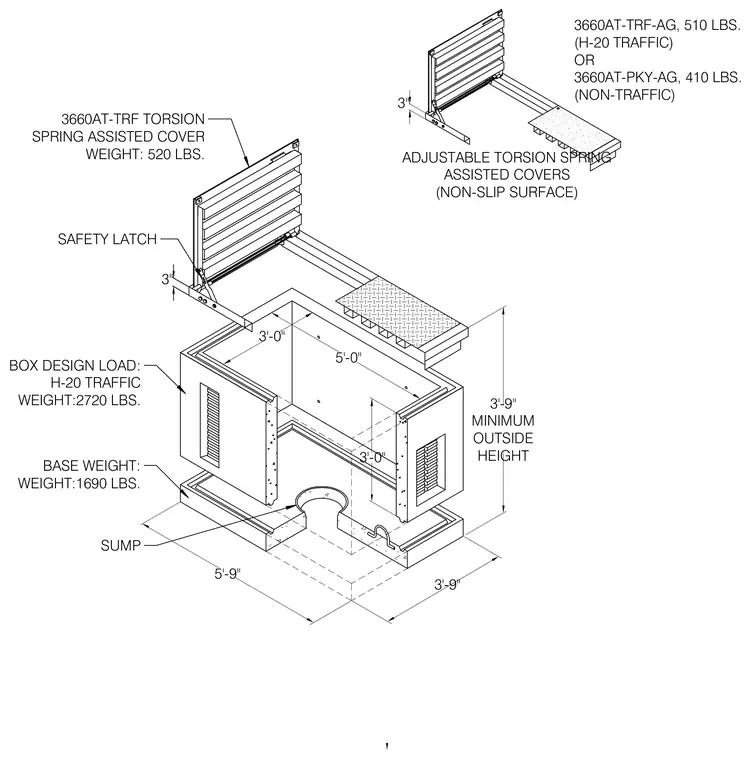

An underground precast concrete pull box measuring three feet by five feet features a minimum outside height of three feet nine inches, an interior depth of three feet, and an integrated base sump. The box body carries an H-20 traffic design load with a total weight of 2,720 pounds, resting on a base section weighing 1,690 pounds. Access is provided through adjustable torsion spring-assisted covers with non-slip surfaces, available as either 3660AT-TRF-AG H-20 traffic rated covers weighing 510 to 520 pounds or 3660AT-PKY-AG non-traffic covers weighing 410 pounds. Safety latches secure the covers in the open position.
