Telecommunications · T-7MGZS

New PCA Pushbutton Station

Materials

About this detail

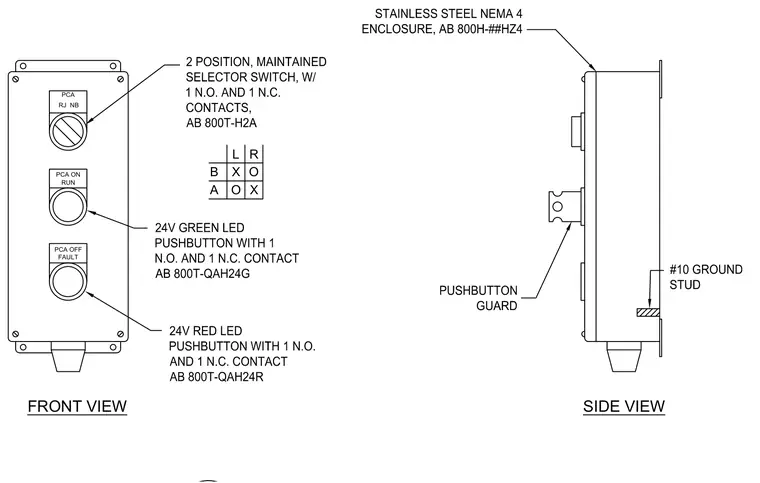

A stainless steel NEMA 4 enclosure houses a two-position maintained selector switch with one normally open and one normally closed contact, alongside twenty-four volt green and red LED pushbuttons with corresponding contacts. A number ten ground stud is integrated into the enclosure for grounding, and a pushbutton guard protects the devices. Front and side views present the component layout, contact configuration table, and physical dimensions of the control station.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
