Ladder Rack Cable Tray Fitting

About this detail

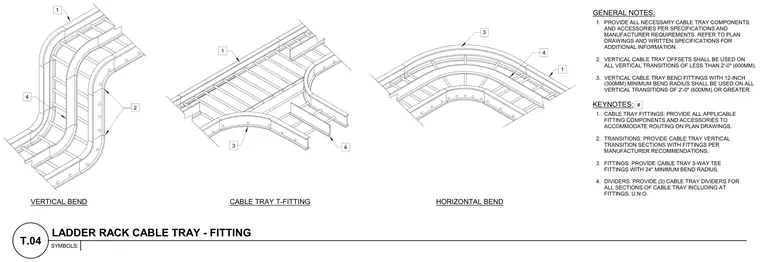

These isometric details illustrate ladder rack cable tray fitting configurations including vertical bends, cable tray tee fittings, and horizontal bends. Three cable tray dividers are provided for all sections of the cable tray including at fittings unless noted otherwise. Vertical cable tray offsets are used on all vertical transitions of less than 2'-0" while vertical bend fittings with a 12-inch minimum bend radius are used on transitions of 2'-0" or greater. Cable tray 3-way tee fittings are specified with a 24" minimum bend radius per manufacturer requirements.
