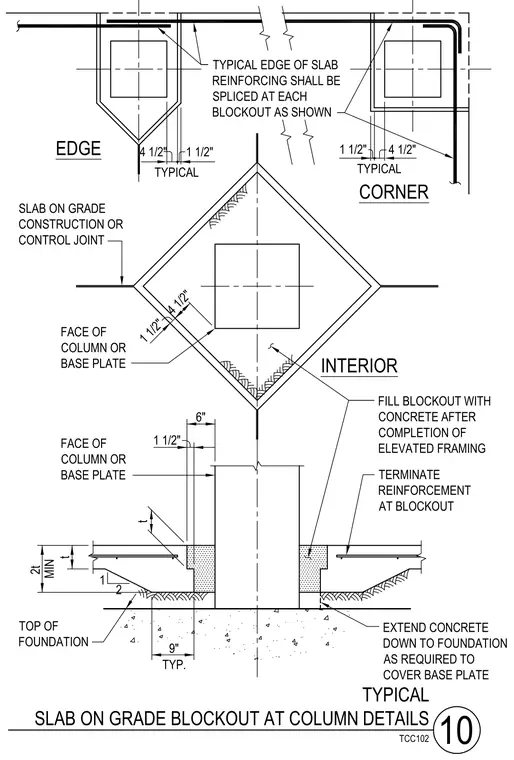

Typical slab-on-grade blockouts are formed around columns for edge, corner, and interior conditions in concrete construction. Typical edge of slab reinforcing is spliced at each blockout with dimensions of one and a half inches and four and a half inches typical. The blockouts are filled with concrete after the completion of elevated framing, terminating reinforcement at the blockout. Concrete extends down to the foundation as required to cover the base plate with a minimum thickness of two t, where t represents the slab thickness. Dimensions indicate a typical nine inch spacing from the face of the column or base plate to the foundation extension.
TYPICAL EDGE OF SLAB REINFORCING SHALL BE SPLICED AT EACH BLOCKOUT AS SHOWN TYPICAL SLAB ON GRADE BLOCKOUT AT COLUMN DETAILS 10 TCC102 TYPICAL 1 1/2" 4 1/2" 1 1/2" 4 1/2" TYPICAL EDGE SLAB ON GRADE CONSTRUCTION OR CONTROL JOINT CORNER FACE OF COLUMN OR BASE PLATE 1 1/2" 4 1/2" INTERIOR FILL BLOCKOUT WITH CONCRETE AFTER COMPLETION OF ELEVATED FRAMING TERMINATE REINFORCEMENT AT BLOCKOUT 6" 1 1/2" t EXTEND CONCRETE DOWN TO FOUNDATION AS REQUIRED TO COVER BASE PLATE t MIN 2t 1 2 TYP. 9" TOP OF FOUNDATION FACE OF COLUMN OR BASE PLATE
