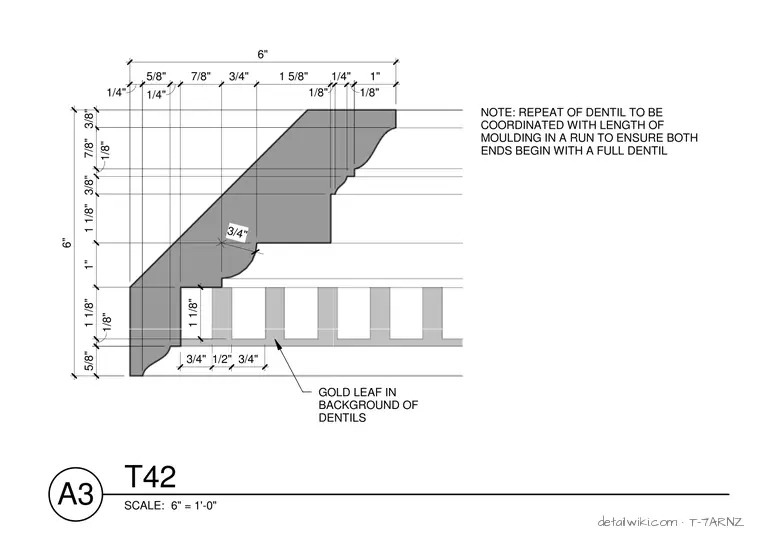

The drawing illustrates a detailed wood moulding profile with precise dimensional callouts, showing a complex geometric crown with a dentil block frieze below. A note specifies that the dentil repeat must be coordinated with run lengths so that both ends begin with a full dentil, and a callout indicates gold leaf applied to the background of the dentils. The overall profile measures 6 inches by 6 inches.
Text on the drawing
5/8" 1/4" 7/8" 3/4" 1 5/8" 1/8" 1/4" 1/8" 7/8" 1/8" 3/8" 1 1/8" 1" 1 1/8" 1/8" 3/4" 5/8" 3/8" 6" 1/4" 1" 6" 3/4" 1/2" 3/4" 1 1/8" GOLD LEAF IN BACKGROUND OF DENTILS NOTE: REPEAT OF DENTIL TO BE COORDINATED WITH LENGTH OF MOULDING IN A RUN TO ENSURE BOTH ENDS BEGIN WITH A FULL DENTIL SCALE: 6" = 1'-0" A3 T42
