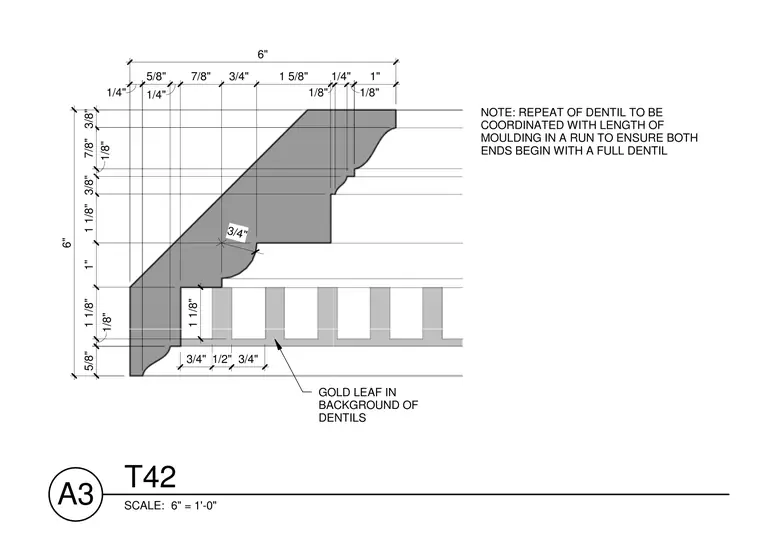

This architectural millwork detail specifies a custom wood dentil moulding profile measuring six inches by six inches. The profile incorporates precise horizontal and vertical dimensional increments ranging from one-eighth inch to one-and-five-eighths inches. A note specifies gold leaf in the background of the dentils. Another note requires the repeat of the dentil to be coordinated with the length of the moulding in a run to ensure both ends begin with a full dentil.
5/8" 1/4" 7/8" 3/4" 1 5/8" 1/8" 1/4" 1/8" 7/8" 1/8" 3/8" 1 1/8" 1" 1 1/8" 1/8" 3/4" 5/8" 3/8" 6" 1/4" 1" 6" 3/4" 1/2" 3/4" 1 1/8" GOLD LEAF IN BACKGROUND OF DENTILS NOTE: REPEAT OF DENTIL TO BE COORDINATED WITH LENGTH OF MOULDING IN A RUN TO ENSURE BOTH ENDS BEGIN WITH A FULL DENTIL SCALE: 6" = 1'-0" A3 T42
