Typical Power Requirements for Racks and Enclosures

Elements

About this detail

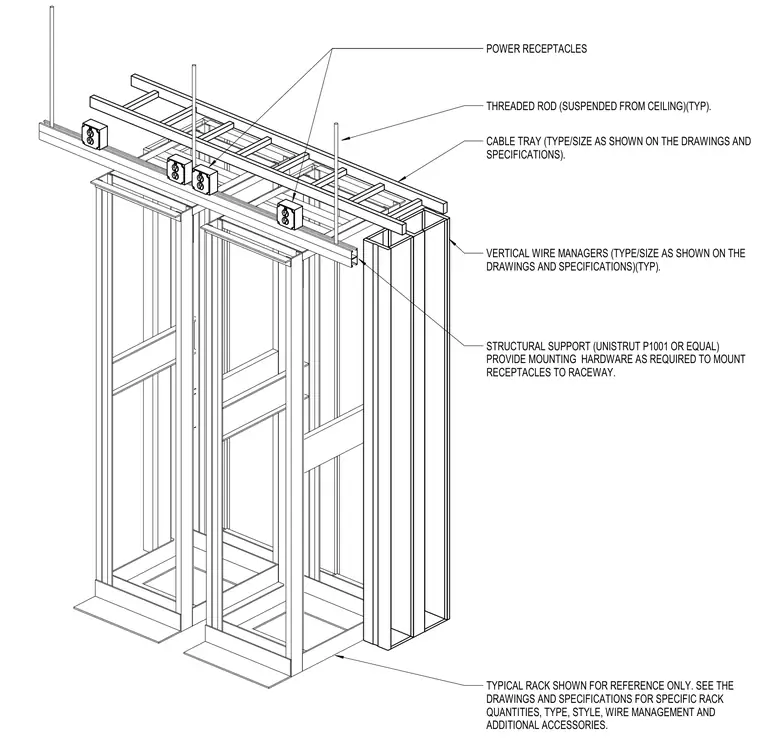

Equipment racks and enclosures are supported with typical vertical wire managers and a cable tray routed overhead. The cable tray and structural support channels, utilizing Unistrut P1001 or equal, are suspended from the ceiling by threaded rods. Power receptacles are mounted to the raceway using required mounting hardware. Typical racks are shown for reference only.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
