An EZ-Path Series 44 pathway penetrates a wall assembly utilizing one to four sleeves secured by wall plates on each side. Foam gaskets provide sealing at the wall interface. Set screws lock the components into place. Installation follows the manufacturer guide.

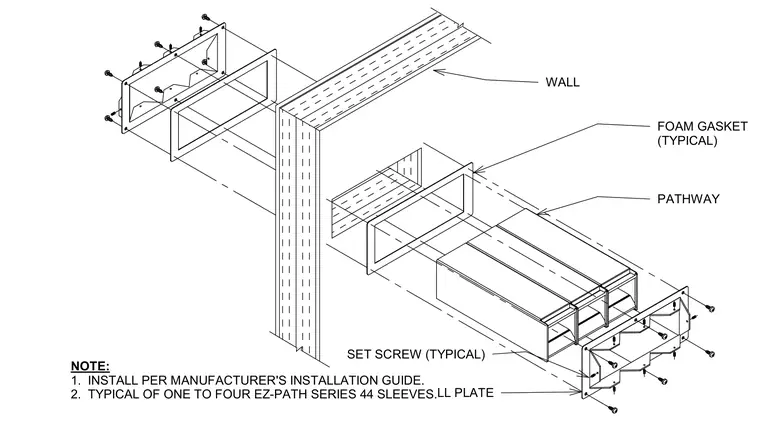

WALL FOAM GASKET (TYPICAL) PATHWAY SET SCREW (TYPICAL) WALL PLATE NOTE: 1. INSTALL PER MANUFACTURER'S INSTALLATION GUIDE. 2. TYPICAL OF ONE TO FOUR EZ-PATH SERIES 44 SLEEVES.
