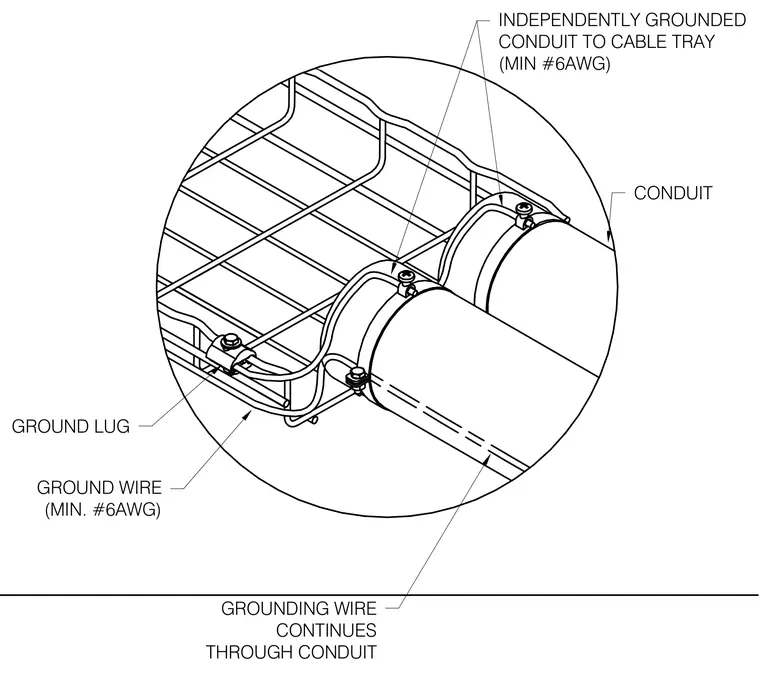

Conduits run parallel to a wire mesh cable tray and connect via an independent ground wire with a minimum size of number 6 American Wire Gauge. The grounding wire continues through the conduit while ground lugs secure the connection at the tray interface. Each conduit is independently grounded to the cable tray structure.
GROUND WIRE (MIN. #6AWG) GROUND LUG GROUNDING WIRE CONTINUES THROUGH CONDUIT CONDUIT INDEPENDENTLY GROUNDED CONDUIT TO CABLE TRAY (MIN #6AWG)
