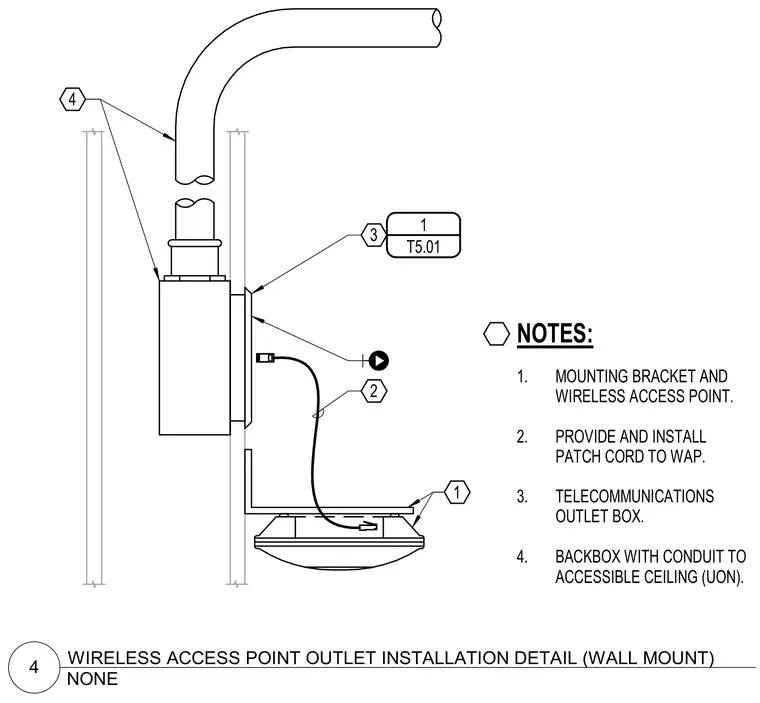

A mounting bracket and patch cord connect a wall-mounted wireless access point to a telecommunications outlet box. A backbox with conduit extends upward to an accessible ceiling unless otherwise noted.
1. MOUNTING BRACKET AND WIRELESS ACCESS POINT. 2. PROVIDE AND INSTALL PATCH CORD TO WAP. 3. TELECOMMUNICATIONS OUTLET BOX. 4. BACKBOX WITH CONDUIT TO ACCESSIBLE CEILING (UON). NOTES: 4 2 1 3 1 T5.01 NONE 4 WIRELESS ACCESS POINT OUTLET INSTALLATION DETAIL (WALL MOUNT)
