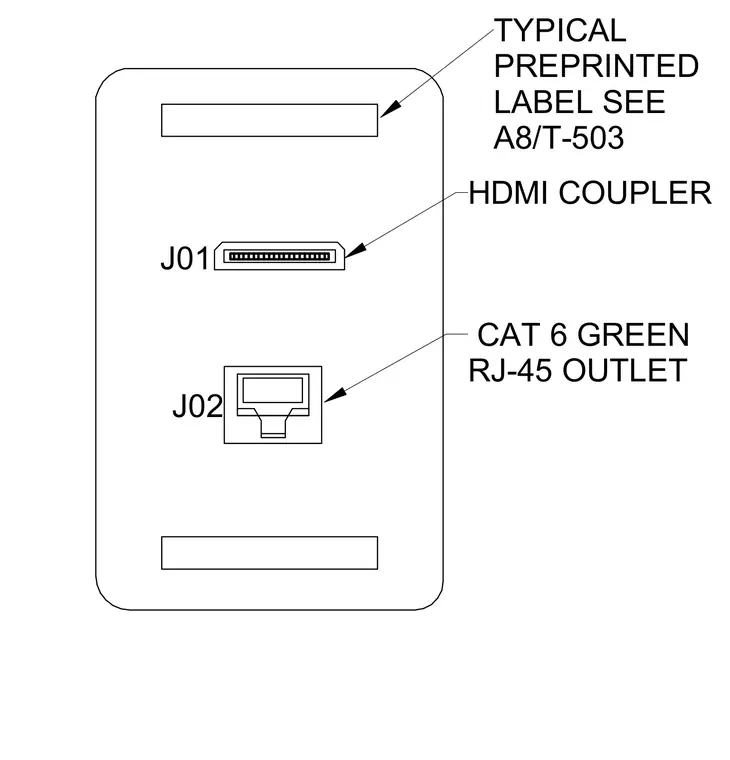

The wall faceplate assembly features a high-definition multimedia interface coupler designated as J01 and a Category 6 green RJ-45 data outlet designated as J02. A typical preprinted label slot is located at the top and bottom for circuit identification per sheet standards.
TYPICAL PREPRINTED LABEL SEE A8/T-503 CAT 6 GREEN RJ-45 OUTLET J02 HDMI COUPLER J01
