Intermediate Distribution Frame Network Rack Layout

Elements

About this detail

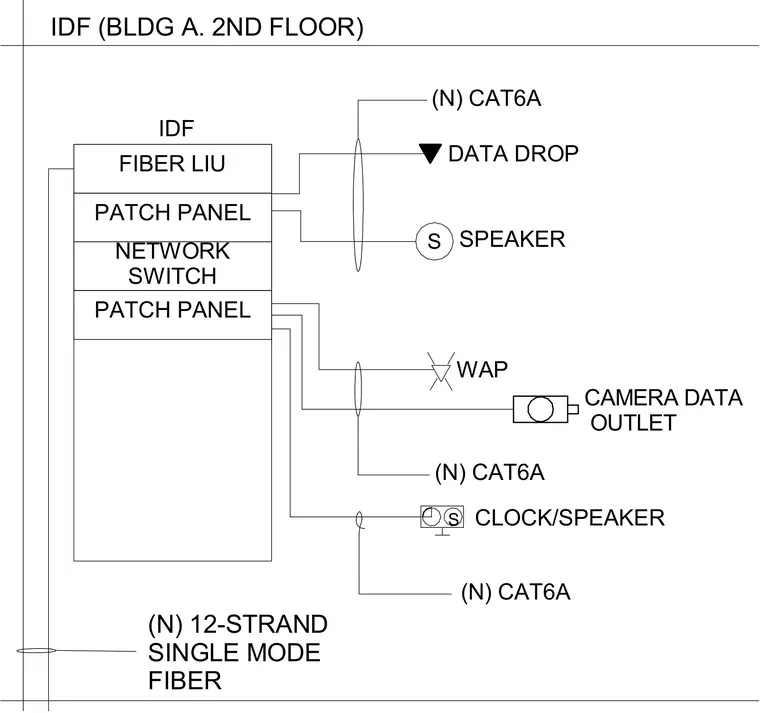

An intermediate distribution frame rack houses a fiber light interface unit, patch panels, and a network switch. A new twelve-strand single mode fiber cable links to the fiber light interface unit. New Category 6A cables connect the patch panels to data drops, wireless access points, cameras, speakers, and clock-speakers.
