Telecommunications · T-62KRV

Label Identification Format - Typical

About this detail

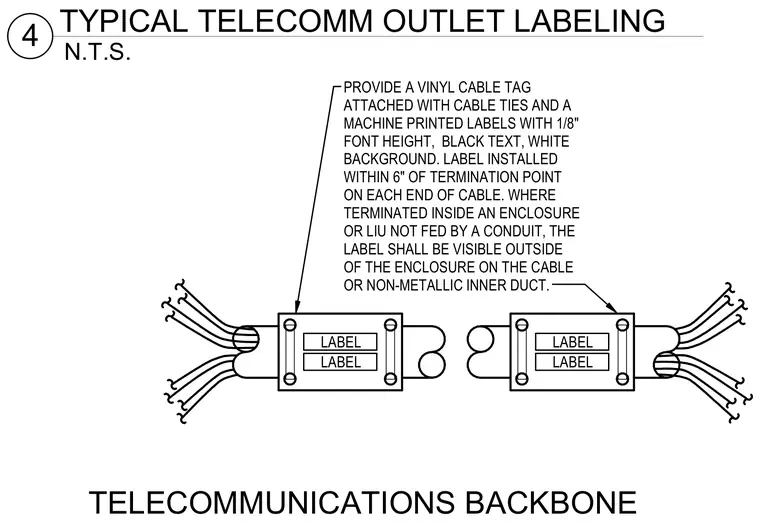

Vinyl cable tags are attached with cable ties alongside machine-printed labels featuring one-eighth-inch black text on a white background. Labels are installed within six inches of the termination point on each end of the cable. Where terminated inside an enclosure or light interface unit not fed by a conduit, the label remains visible outside of the enclosure on the cable or non-metallic inner duct.
