Telecommunications · T-5YTKN

Miscellaneous Data Device

Elements

About this detail

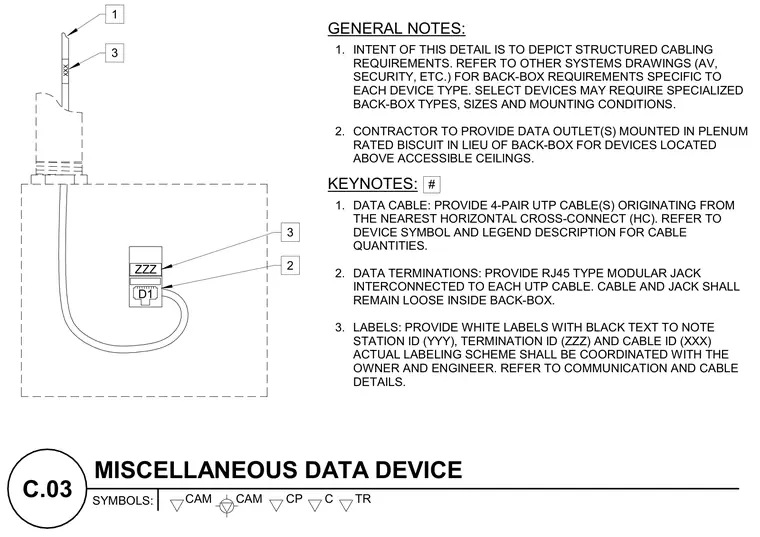

Four-pair unshielded twisted pair cable originates from the nearest horizontal cross-connect and terminates to an RJ45 modular jack remaining loose inside a back-box. White labels with black text note station identification, termination identification, and cable identification. Data outlets located above accessible ceilings are mounted in plenum-rated biscuits in lieu of back-boxes.
