Cable runways are connected using a junction splice clamp kit CPI #11302-701 or equal, and extended using an extension clamp CPI #11301-001 or equal. The junction splice assembly utilizes corner plates secured with threaded bolts, washers, and nuts to join intersecting runway sections. The extension clamp assembly utilizes parallel clamping bars secured with threaded fasteners to extend runway lengths.

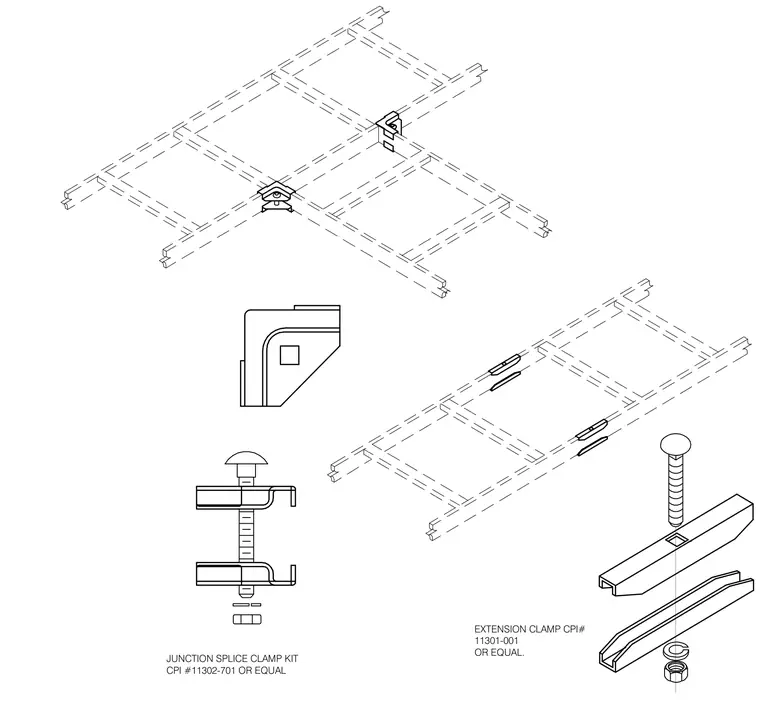

JUNCTION SPLICE CLAMP KIT CPI #11302-701 OR EQUAL EXTENSION CLAMP CPI# 11301-001 OR EQUAL.
