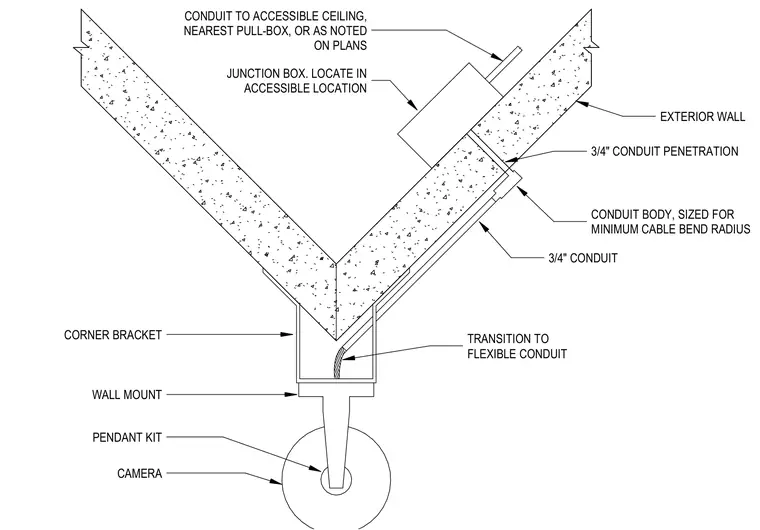

An exterior security camera mounts to an exterior building corner via a dedicated corner bracket and wall mount assembly paired with a pendant kit. A three-quarter-inch conduit routing from the camera transitions to flexible conduit through a conduit body sized to maintain the minimum cable bend radius. The conduit penetrates the exterior wall and connects to an accessible junction box located in an accessible location or routed to the nearest pull box.
EXTERIOR WALL CONDUIT TO ACCESSIBLE CEILING, NEAREST PULL-BOX, OR AS NOTED ON PLANS JUNCTION BOX. LOCATE IN ACCESSIBLE LOCATION 3/4" CONDUIT PENETRATION CORNER BRACKET WALL MOUNT PENDANT KIT CAMERA CONDUIT BODY, SIZED FOR MINIMUM CABLE BEND RADIUS 3/4" CONDUIT TRANSITION TO FLEXIBLE CONDUIT
