Telecommunications Outlet Labeling Detail

About this detail

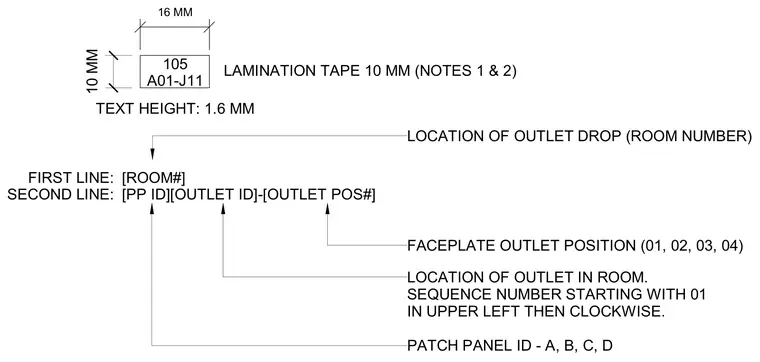

Telecommunications outlet labeling uses a 10 millimeter by 16 millimeter lamination tape with a text height of 1.6 millimeters. The first line displays the room number indicating the location of the outlet drop. The second line shows the patch panel identifier, outlet identifier, and outlet position sequence number starting from the upper left and moving clockwise. Callouts specify the exact positioning and character format for faceplate labeling.
