1" Conduit Down Wall to Card Reader Backbox

Elements

About this detail

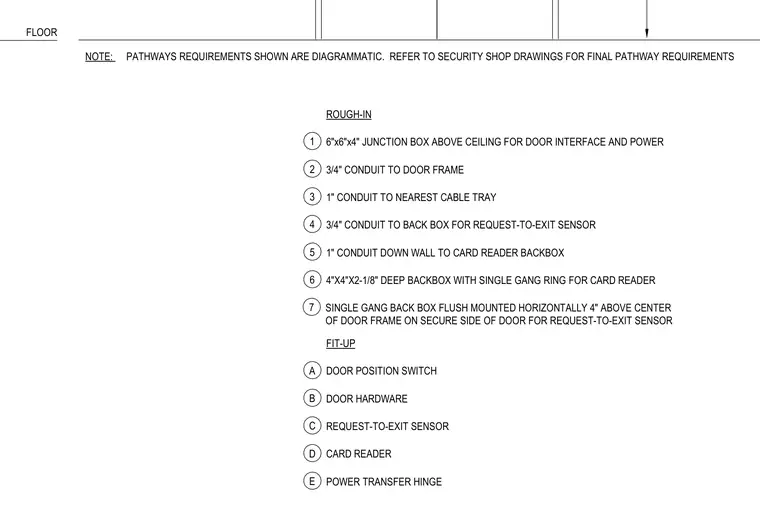

This drawing outlines the security rough-in and fit-up requirements for a controlled access door assembly. A six-inch by six-inch by four-inch junction box is positioned above the ceiling for door interface and power, connecting via three-quarter-inch conduit to the door frame, one-inch conduit to the nearest cable tray, and three-quarter-inch conduit to a back box for the request-to-exit sensor. A one-inch conduit runs down the wall to a four-inch by four-inch by two-and-one-eighth-inch deep back box with a single-gang ring for the card reader. A single-gang back box is flush-mounted horizontally four inches above the center of the door frame on the secure side for the request-to-exit sensor. Additional fit-up items include a door position switch, door hardware, request-to-exit sensor, card reader, and power transfer hinge. Pathways requirements shown are diagrammatic, and users must refer to security shop drawings for final pathway requirements.
