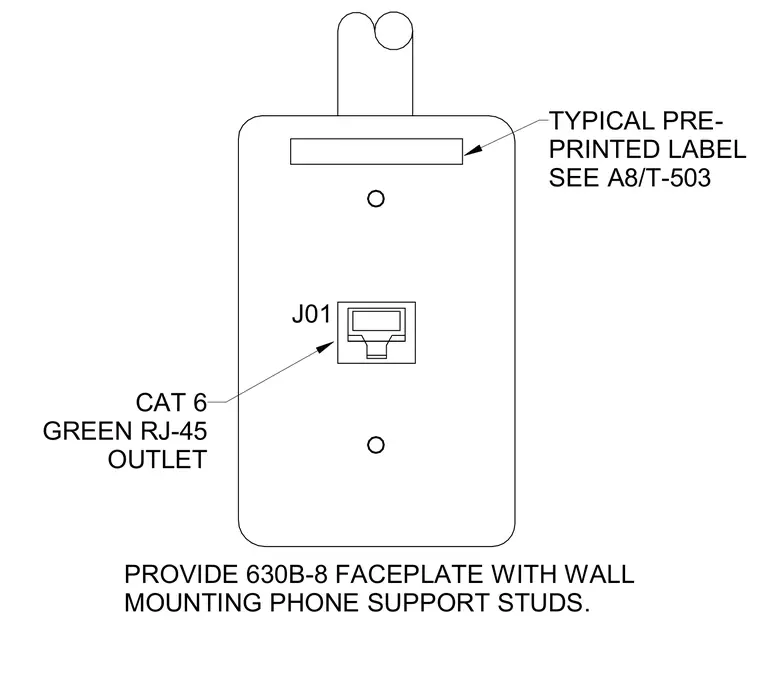

The assembly consists of a 630B-8 faceplate featuring wall mounting phone support studs and a single Category 6 green RJ-45 outlet jack labeled J01. A typical pre-printed label is positioned above the jack per sheet reference instructions.
CAT 6 GREEN RJ-45 OUTLET TYPICAL PRE- PRINTED LABEL SEE A8/T-503 J01 PROVIDE 630B-8 FACEPLATE WITH WALL MOUNTING PHONE SUPPORT STUDS.
