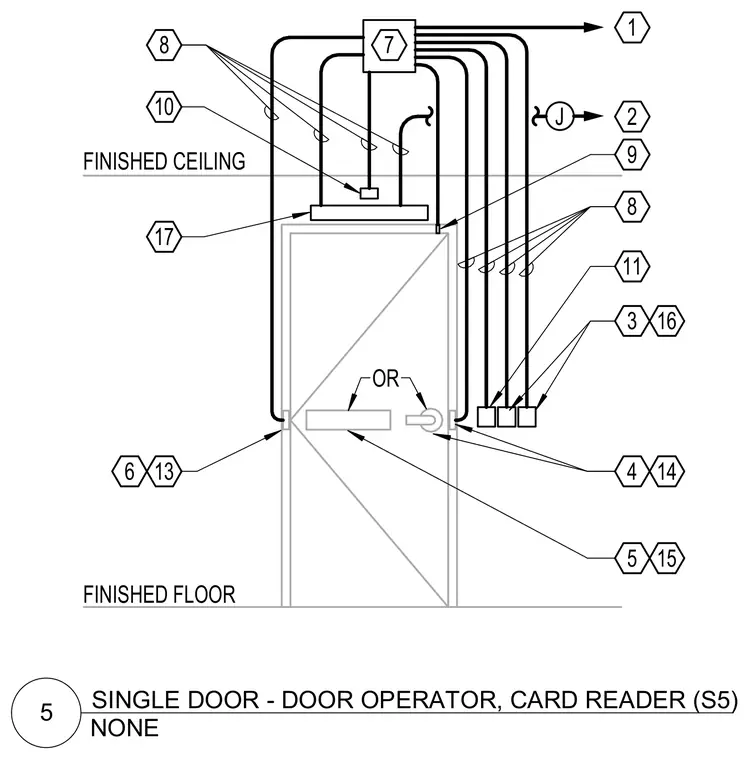

This diagram details the low-voltage and power cabling paths between a central junction box above the finished ceiling and various door hardware components. Conduit and wiring connect to an automatic door operator mounted above the frame, a card reader, a push button or push bar, door contacts, and electrical boxes. The system routes through standard pathways relative to the finished floor and finished ceiling levels.
J 2 3 1 OR 4 5 13 7 8 8 9 10 11 FINISHED FLOOR FINISHED CEILING 6 14 15 17 16 NONE 5 SINGLE DOOR - DOOR OPERATOR, CARD READER (S5)
