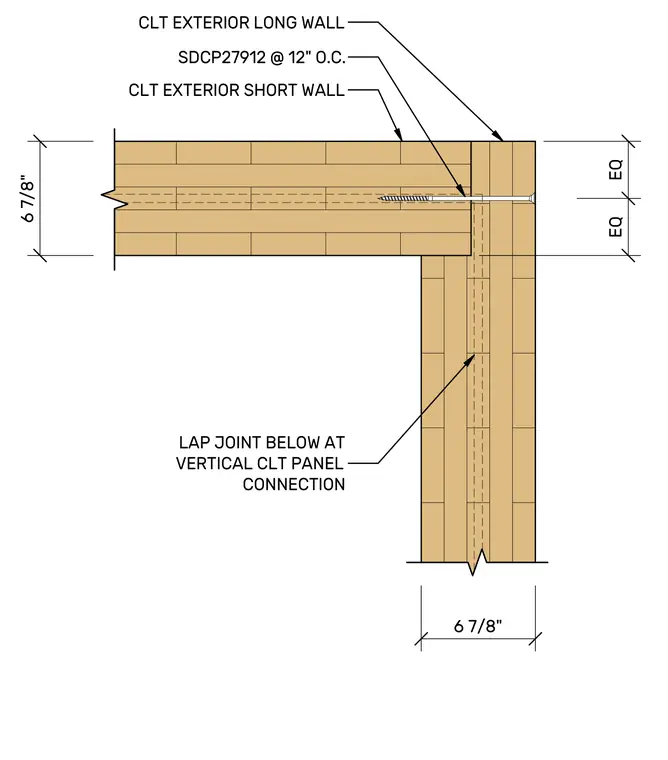

An exterior cross-laminated timber short wall meets an exterior long wall at a ninety-degree corner junction. Structural wood screws (SDCP27912) are spaced at twelve inches on center through the intersecting panel. A lap joint occurs below at the vertical cross-laminated timber panel connection. Both walls maintain a thickness of six and seven-eighths inches.
SDCP27912 @ 12" O.C. LAP JOINT BELOW AT VERTICAL CLT PANEL CONNECTION CLT EXTERIOR SHORT WALL CLT EXTERIOR LONG WALL 6 7/8" 6 7/8" EQ EQ A ! A -«ramrara 3 A A t
