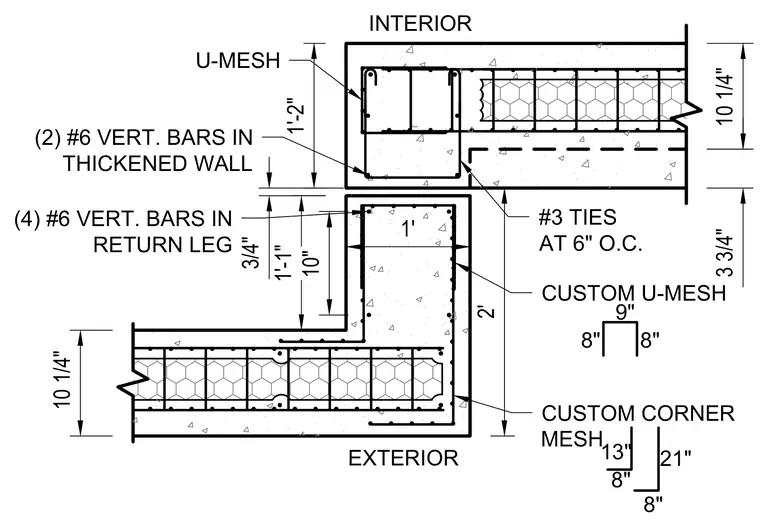

A reinforced concrete thickened wall corner with a return leg incorporates two number six vertical bars within the thickened wall and four number six vertical bars within the return leg. Number three ties are spaced at six inches on center around the reinforcement. Custom U-mesh and custom corner mesh provide additional reinforcement across the corner junction. The wall assembly incorporates interior and exterior concrete faces with specified dimensions.
3 3/4" 1'-2" 3/4" 1'-1" 1' 2' 8" 13" 21" 8" 10 1/4" 10 1/4" CUSTOM U-MESH EXTERIOR INTERIOR #3 TIES AT 6" O.C. U-MESH (4) #6 VERT. BARS IN RETURN LEG (2) #6 VERT. BARS IN THICKENED WALL 10" CUSTOM CORNER MESH 8" 9" 8"
