Telecommunications · T-4TPHJ

Notes:

Elements

About this detail

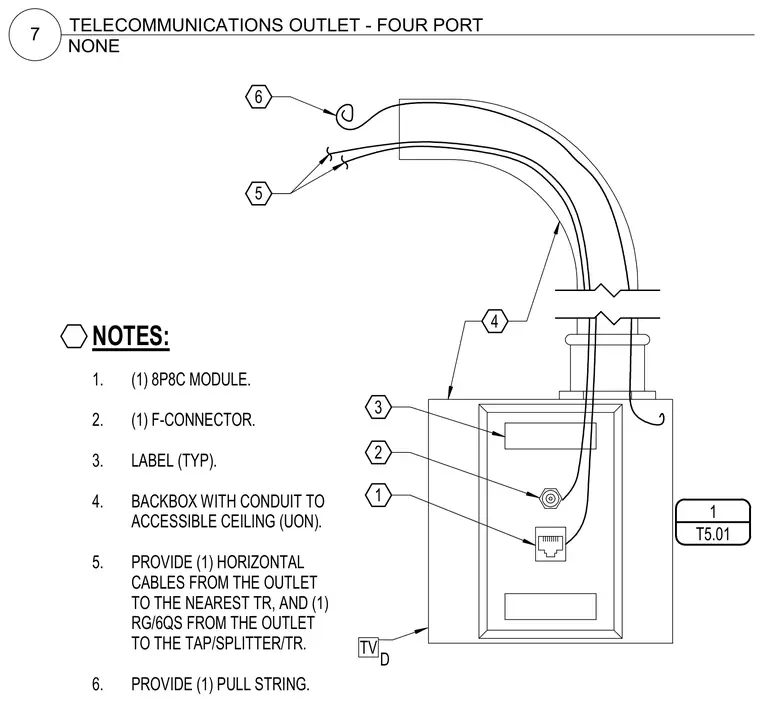

The assembly consists of a wall-mounted backbox connected to an accessible ceiling via conduit unless otherwise noted. The faceplate accommodates one 8P8C module, one F-connector, and typical identification labels. One horizontal cable runs from the outlet to the nearest telecommunications room, and one RG/6QS coaxial cable runs from the outlet to the tap, splitter, or telecommunications room. A pull string is provided inside the conduit for future cabling.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
